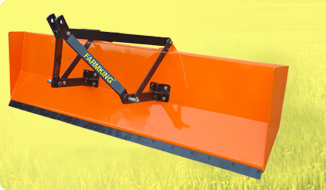

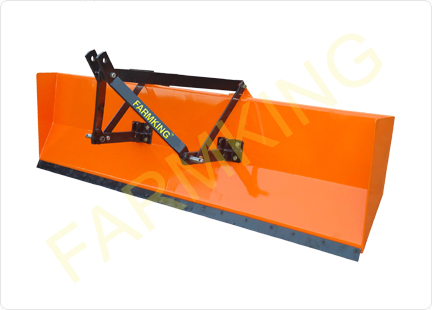

Heavy Duty Land Leveller

ADVANTAGE

• The FARMKING Heavy duty Land Leveller is a simple and rugged Implement which is directly fitted to the tractor.
• The 6 mm -10 mm single plate duty reinforced, makes our leveller trouble free in operation.
• It is a basic implement for leveling of land.

FEATURES

• Levelling Blade is made out of special steel which gives it double the life compared to ordinary blades.
• The Leveller is available with 6, 7 and 8 ft. width.

MODLE	6 Feet(1850 mm)	7 Feet(2150 mm)	8 Feet(2450 mm)
FRAME	6 mm & 75x40 Channel	7 mm & 75x40 Channel	10 mm & 75x40 Channel
SIDE SUPPORT	6 mm Plate	7 mm Plate	8 mm Plate
THICKNESS OF PLATE	6 mm or Optional	7 mm or Optional	8 mm or Optional
BLADE THICKNESS	6 mm	6 mm	6 mm
3 POINT LINKAGE	65x12 mm	65x16 mm Flat	65x16 mm Flat ,
CENTRAL SUPPORT	MS 75x40 mm Channel	MS 75x40 mm Channel	MS 75x40 mm Channel
LINKAGE PIN	28 mm	28 mm	28 mm
LENGTH	1850 mm	2150 mm	2450 mm
APPROX. WEIGHT	145 Kg.	160 Kg.	175 Kg.

NOTE : The contents of this catalogue are only giving information to the end user without engagement from our side. The company can modify SPECIFICATIONS of the total machine and it's components without any previous notice.
