Heavy Duty Trailed Offset Disc Harrow

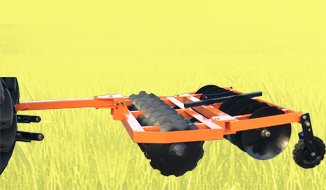

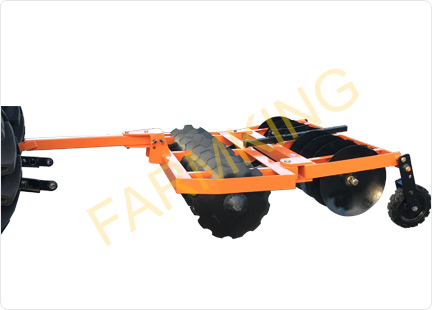

'THE FARMKING TRAILED HEAVY DUTY OFFSET DISC HARROW' trails behind the tractor and because of heavy design and weight can effectively break up heavy clods. And when green manures, trash or other surface growth is cross disced, the organic matter is effectively buried and mixed with the soil and decays rapidly into humus. The Harrow has a strong and sturdy main frame with boron steel discs and heavy duty chilled cast iron spools to provide center weight. Optional wheel can be provided for towing the road.

TECHNICAL SPECIFICATIONS

PARTICULARS	6x6	7x7	8x8
FRAME	75 x 10 mm	75 x 10 mm	75 x 10 mm
PIPE	Extra heavy Duty	Extra heavy Duty	Extra heavy Duty
	(With solid round of 225 mm each side)	(With solid round of 225 mm each side)	(With solid round of 225 mm each sjde)
SPOOL	Extra heavy duty	Extra heavy duty	Extra heavy duty
DISC	660 mm	660 mm	660 mm
NO. OF DISCS	12	14	16
TYPE OF DISC	Front Notched & Rear Plane	Front Notched & Rear Plane	Front Notched & Rear Plane
JOINING PLATE	20 mm	20 mm	20 mm
APPROX. WEIGHT	525 Kgs.	610 Kgs.	690 Kgs.

NOTE : The contents of this catalogue are only giving information to the end user without engagement from our side. The company can modify SPECIFICATIONS of the total machine and it's components without any previous notice.
