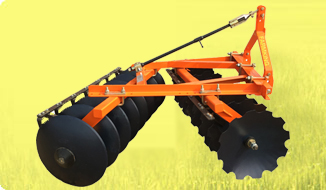

Mounted Offset Disc Harrow

ADVANTAGE

• The FARMKING MOUNTED OFFSET DISC HARROW is used in open farm workings for the superficial ploughing, for the shattering of clods, preparation of soil for sowing, burial of organic substances & remains.
• To air the soil and to eliminate the weeds.
• For breaking the roots.
• It has low purchasing and utilization costs both for its wide working width, and for its high speed (from 7 to 15 km/hour).
• Angle can be easily adjustable.
• It can be used in light and medium soil.

FEATURES

• High quality Boron steel discs.
• Easily transportable- as it gets easily attached and mounted.
• Tillage depth of the harrow is 6 inch.
• Maintenance is easy but need to be scheduled.

TECHNICAL SPECIFICATIONS

	6X6	7X7	8X8	9x9	10x10
No. OF DISCS	12	14	16	18	20
FRAME	75 x 10 mm Angle with 100 x 50 mm Channel	75 x 10 mm Angle with 100 x 50 mm Channel	75 x 10 mm Angle with 100 x 50 mm Channel	75 x 10 mm Angle with 100 x 50 mm Channel	75 x 10 mm Angle with 100 x 50 mm Channel
GANG BOLT	32 mm Central square Solid Bar	32 mm Central square Solid Bar	32 mm Central square Solid Bar	32 mm Central square Solid Bar with split gangs	32 mm Central square Solid Bar with split gangs
LENGTH	2030 mm	2080 mm	2130 mm	2230 mm	2280 mm
HEIGHT	1150 mm with 560 mm Disc 1200 mm with 610 mm Disc	1150 mm with 560 mm Disc 1200 mm with 610 mm Disc	1150 mm with 560 mm Disc 1200 mm with 610 mm Disc	1150 mm with 560 mm Disc 1200 mm with 610 mm Disc	1150 mm with 560 mm Disc 1200mm with 610 mm Disc
DISTANCE BETWEEN DISCS	250 mm	225 mm	225 mm	225 mm	225 mm
MOUNTING	CAT. I / II (Optional)	CAT. I / II (Optional)	CAT. I / II (Optional)	CAT. I / II (Optional)	CAT. I / II (Optional)
DISC DIAMETER (mm)	560 / 610 (Optional)	560 / 610 (Optional)	560 / 610 (Optional)	560 / 610 (Optional)	560 / 610 (Optional)
TYPE OF DISCS	Notched in Front & Plain in Rear	Notched in Front & Plain in Rear	Notched in Front & Plain in Rear	Notched in Front & Plain in Rear	Notched in Front & Plain in Rear
BEARING HUBS (Nos.)	4	4	6	8 (Split Gang Arrangement)	8 (Split Gang Arrangement)
WIDTH OF CUT	1350 - 1400 mm	1600 - 1650 mm	1800 - 1850 mm	2000 - 2100 mm	2250 - 2300 mm
POWER REQUIRED	35 HP	40 - 45 HP	45 - 50 HP	50 - 55 HP	55 - 60 HP
APPROX WEIGHT (KG)	425 with 610 mm Disc 400 with 560 mm Disc	465 with 610 mm Disc 450 with 560 mm Disc	510 with 610 mm Disc 480 with 560 mm Disc	570 with 610 mm Disc 540 with 560 mm Disc	625 with 610 mm Disc 575 with 560 mm Disc

NOTE : The contents of this catalogue are only giving information to the end user without engagement from our side. The company can modify SPECIFICATIONS of the total machine and it's components without any previous notice.
